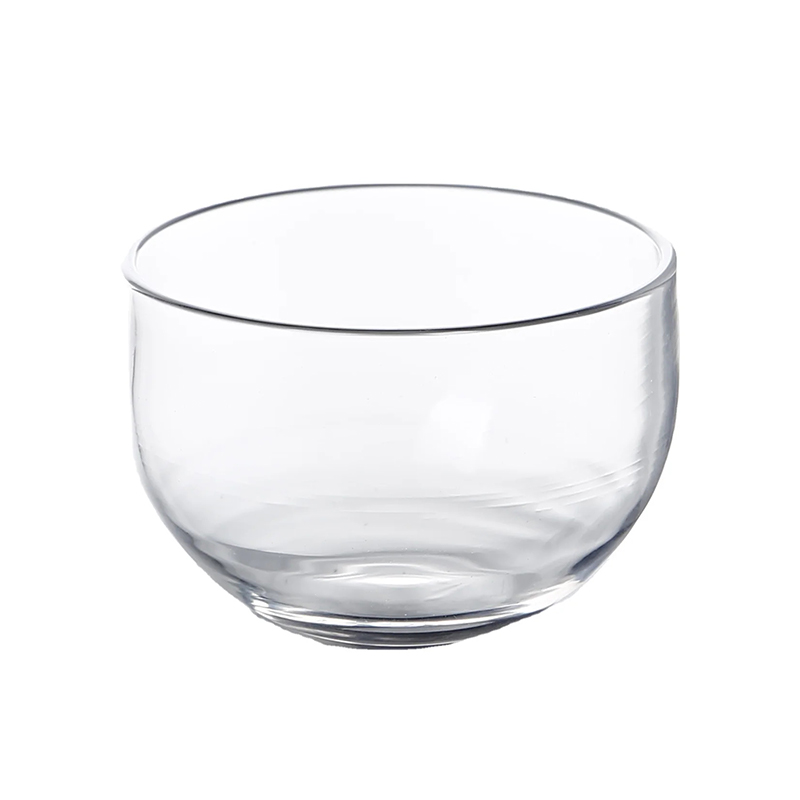

Transparent Quartz Crucible (Crystal Singing Bowl)
Inquiry
Product introduction
Quartz crucible has the advantages of high purity, high temperature resistance, high dimensional accuracy, good heat preservation, energy saving, stable quality, etc., and its application is more and more extensive. The inspection of quartz crucibles is a very important part, and the detection of quartz crucibles is developing towards the field inspection direction!
We have excellent technology development capabilities and high-purity fused quartz crucibles for the solar-grade monocrystalline silicon application. We can also produce special types according to the client's technical drawing.
Advantages of Quartz crucible for melting:
1. High purity, SiO2>99.99%
2. Resistance to high temperatures and corrosion
3. Used for industry, laboratory
4. Electrical arc crucible 8"-24", used for pulling monocrystalline silicon
5. Small size, used for laboratory and other industries
6. It is applicable to semiconductor and solar energy
Application of Quartz crucible for melting:
1. Chemical Industries
2. Electric Light Source
3. Laboratories
4. Medical equipment
5. Metallurgy
6. Optical
7. Photovoltaic
8. Photo communications
9. Research
10. Schools
11. Semiconductor
12. Solar
Product parameters
Translucent quartz glass properties
|
Property |
MQ-R100 |
MQ-R300/R400 |
|
Density |
|
1.95×103kg/m3 |
|
Compression Strength |
|
|
|
Coefficient of Thermal Expansion |
|
|
|
Thermal Conductivity |
Low |
Low |
|
Specific Heat |
|
650J/kg℃ |
|
Softening Point |
|
|
|
Annealing Point |
1050℃ |
1100℃ |
Precision
| Range of OD | OD Tolerance | WT Tolerance | Siding Tolerance | Out of Round | Bow/1000mm |
|---|---|---|---|---|---|
| 10mm Max | ±2.00% | ±10% | 12% | 2.0% | 2.0mm |
| 10–20mm | ±1.25% | ±8% | 10% | 1.5% | 2.0mm |
| 20–30mm | ±1.00% | ±10% | 15% | 1.5% | 2.0mm |
| 30–50mm | ±1.00% | ±10% | 15% | 1.5% | 2.0mm |
| 50–100mm | ±1.00% | ±12% | 15% | 2.0% | 2.0mm |
| 100–200mm | ±1.00% | ±12% | 15% | 2.0% | 2.0mm |
Corrosion Amount
| Corrosion Amount | Test Conditions | Corrosion Rate |
|---|---|---|
| H₂SO₄ (Sulfuric Acid) | Density 1.84, 2h, 20°C (g/cm²) | 1.4 × 10⁻⁸ |
| HNO₃ (Nitric Acid) | Density 1.4, 2h, 20°C (g/cm²) | 5 × 10⁻⁸ |
| HCl (Hydrochloric Acid) | Density 1.19, 2h, 20°C (g/cm²) | 15 × 10⁻⁸ |
| NaOH (Sodium Hydroxide) | 1%, 2h, 110°C (g/cm²) | 166 × 10⁻⁶ |
| KOH (Potassium Hydroxide) | 1%, 2h, 98°C (g/cm²) | 68 × 10⁻⁶ |
Thermal Properties Mechanical Properties
| Property | Value | Unit |
|---|---|---|
| Density | 2.2 | g/cm³ |
| Compression Strength | 1100 | N/mm² |
| Bending Strength | 67 | N/mm² |
| Tension Strength | 48 | N/mm² |
| Micro Hardness | 8600~9800 | N/mm² |
| Moh's Hardness | 5.5~6.5 | - |
Electrical Properties
| Property | Value | Unit |
|---|---|---|
| Electrical Resistivity (350°C) | 7 × 10⁷ | Ω·cm |
| Insulating Strength (20°C) | 250–400 | kV/cm |
| Dielectric Constant | 3.7 | — |
| Spec | Diameter D (mm) | Height H (mm) | Straight Wall Thickness W1 (mm) | Curved Wall Thickness W2 (mm) | Bottom Thickness W3 (mm) | Curved Wall Diameter R1 (mm) | Curved Wall Diameter R2 (mm) |
|---|---|---|---|---|---|---|---|
| 14inch | 355±2 | 240±3 | 10±3 | 10±3 | 11±3 | 89 | 381 |
| 16inch | 405±2 | 280±3 | 9.0±2 | 9.0±2 | 9.0±2 | 90 | 450 |
| 18inch | 457±2 | 355±2 | 7 - 12 | 7 - 12 | 7 - 12 | 88 - 120 | 457 - 500 |
| 20inch | 505±2 | 385±3 | 11.0±2 | 11.0±2 | 11.0±2 | 120 | 508 |
| 22inch | 555 - 560 | 406±3 | 11+3/-1 | 11+3/-1 | 11+3/-1 | 127 | 560 |
| 24inch | 609+2/-3 | 440±3 | 11 - 2/+3 | 12 - 2/+3 | 12 - 2/+3 | 120 | 610 |
| 26inch | 654±3 | 500±3 | 12+3/-1 | 12+3/-1 | 14+4/-2 | 120 | 660 |
| 28inch | 708±3 | 556±3 | 13.5±2 | 13.5±2 | 19.0±3 | 120 | 710 |
