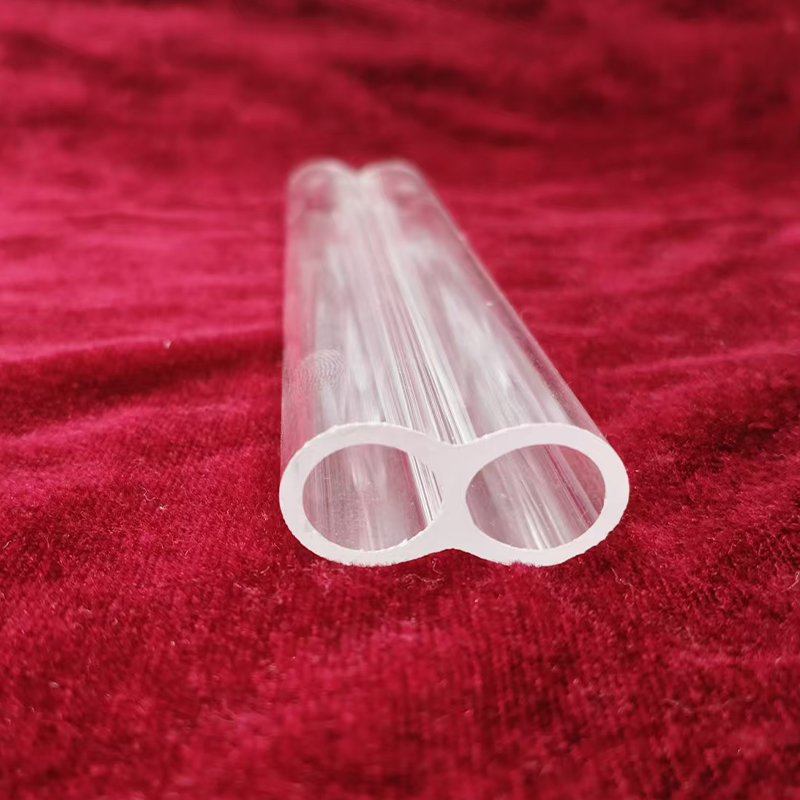

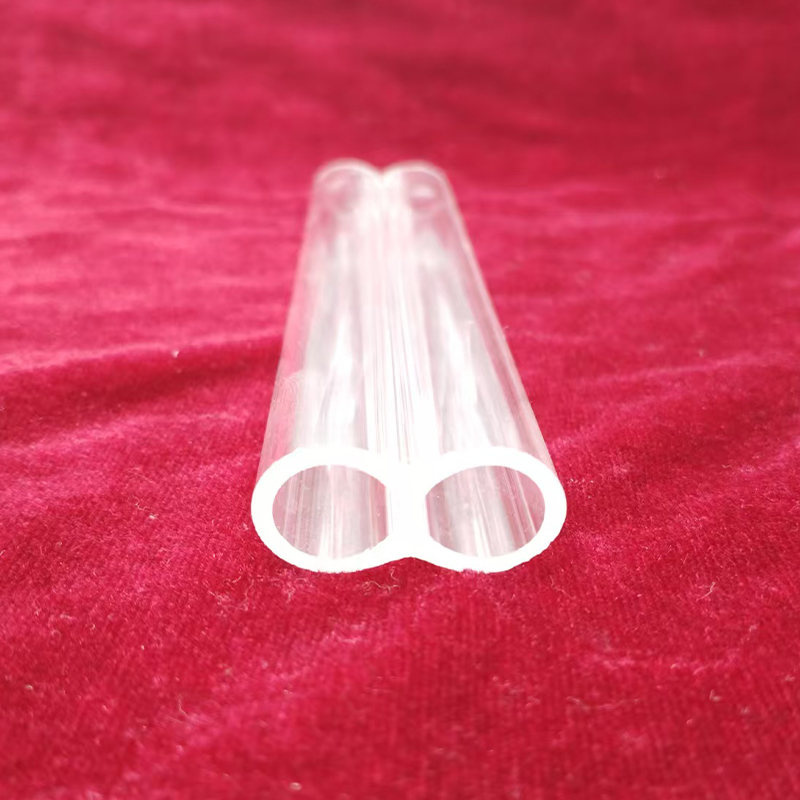

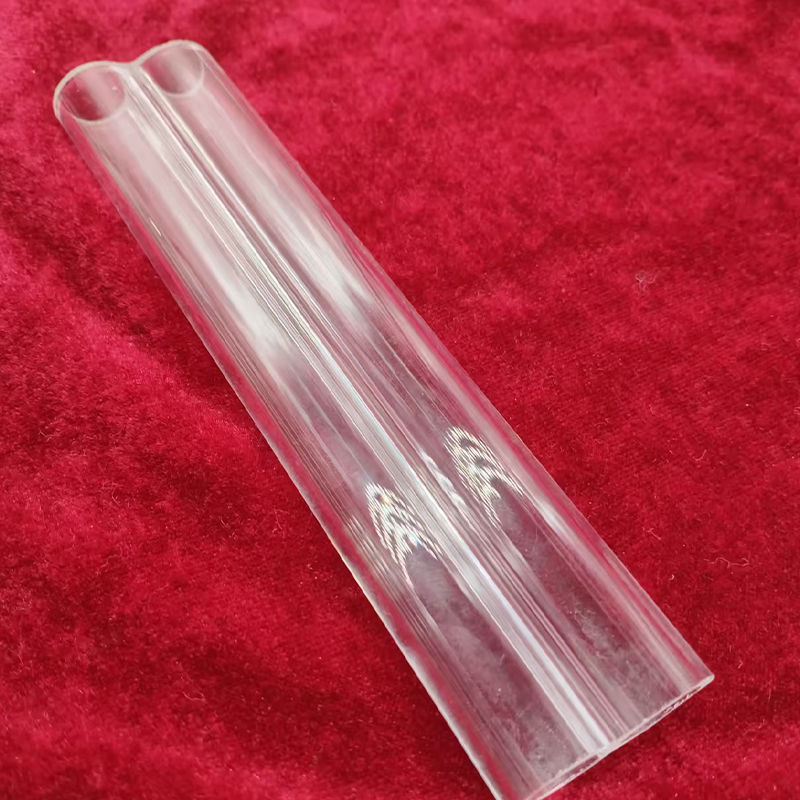

Transparent Quartz Tube Double Tube
Inquiry
Product introduction
The transparent quartz tube double tube uses high-purity silicon dioxide as the core raw material, with SiO₂ content exceeding 99.9% and extremely low impurity content, which ensures the long-term stability of the material from the source. It has high geometric dimensional accuracy and uniform tube wall thickness, which can meet the stringent requirements of precision machining and complex working conditions, and provide a reliable foundation for the efficient operation of the equipment.
The product has strong resistance to thermal deformation and can withstand extreme temperature changes such as sudden cooling and heating, avoiding cracking or deformation caused by thermal stress.
Product parameters
| Category | Specification |
|---|---|
| Product Name | Clear Quartz Pipe |
| Application | Heater |
| Outside Diameter (OD) | 3–450 mm (customizable) |
| Place of Origin | Jiangsu, China |
| Brand Name | Mingyang Quartz Glass Tube |
| Model Number | Quartz Glass Test Tube |
| Color Options | Opaque / Clear |
| Surface Treatment | Grinded |
| Shape | One End Closed Quartz Tube |
| Ozone Content | Ozone Free |
| Material Composition | >99.99% SiO₂ (High-Purity Quartz) |
| Certification | ISO 9001 Certified |
| Customization | Size & Length (Tailored to requirements) |
| Density | 2.2 g/cm³ |
| Available Shapes | Both-End Open Tube / One-End Closed Tube |
| Operating Temperature | Up to 1250°C |
| Packaging | Standard Export Packing |
MQ-T100 Chemical element composition(Typical data) ppm
|
|
Al |
Fe |
K |
Li |
Cu |
Na |
B |
Ca |
Mg |
P |
Ti |
OH |
|
MQ-T100 MQ-T101 MQ-T102 |
25.00 |
0.80 |
1.20 |
0.80 |
0.08 |
2.00 |
0.50 |
0.80 |
0.25 |
— — — |
— — — |
150 20 5 |
|
MQ-T110 |
|
|
|
|
|
|
|
|
|
|
|
120 |
|
MQ-T111 |
15.00 |
0.20 |
0.60 |
0.40 |
0.02 |
0.80 |
0.10 |
0.40 |
0.05 |
0.06 |
1.20 |
15 |
|
MQ-T112 |
|
|
|
|
|
|
|
|
|
|
|
5-1 |
|
MQ-R100 MQ-R101 |
45.00 |
1.00 |
2.50 |
1.50 |
0.15 |
5.00 |
— — — |
1.50 |
0.75 |
— — — |
— — — |
— — — |
OH content differs with detail, usage, and customer requirements.
Transparent quartz tube general dimension and tolerance (mm)
|
Designation |
OD |
Wall |
Length |
Max.Siding |
Max, Ovality |
Max.Bow |
|
<10 |
±0.15 |
±0.10 |
±1.0 |
0.10 |
0.15 |
2% |
|
10-15 |
+020 |
±0.10 |
±1.0 |
0.12 |
0.20 |
2% |
|
15-20 |
±0.30 |
±0.15 |
±1.0 |
0.13 |
0.25 |
2% |
|
20-30 |
±040 |
±015 |
±1.0 |
0.15 |
0.30 |
2% |
|
30-40 |
±0.60 |
±0.15 |
±1.0 |
0.25 |
0.40 |
2% |
|
40-50 |
±080 |
±0.20 |
±1.0 |
0.30 |
0.50 |
2% |
|
50-65 |
±1.00 |
±0.20 |
±2.0 |
0.40 |
0.60 |
2.5%% |
|
65-85 |
±1.20 |
±0.30 |
±2.0 |
0.50 |
0.80 |
2.5%% |
|
85-100 |
±1.50 |
±0.30 |
±2.0 |
0.60 |
1.00 |
25% |
More severe tolerance can be supplied.
