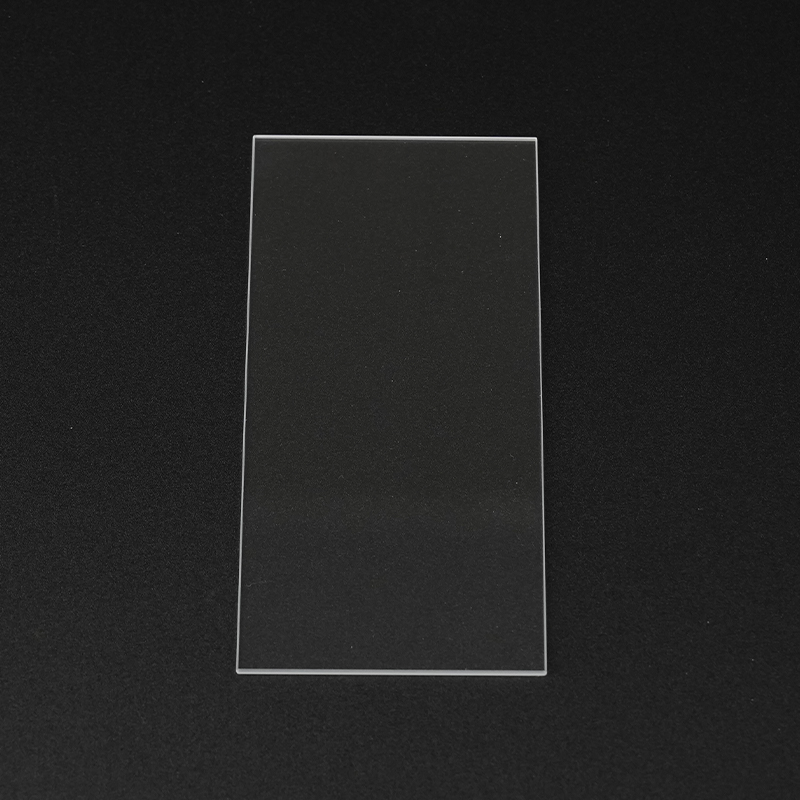

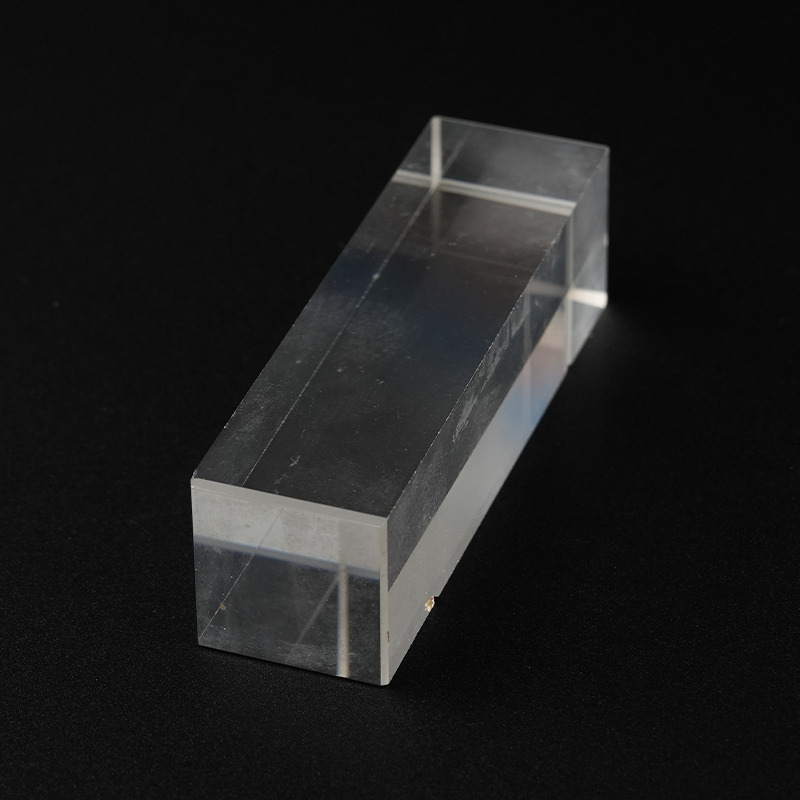

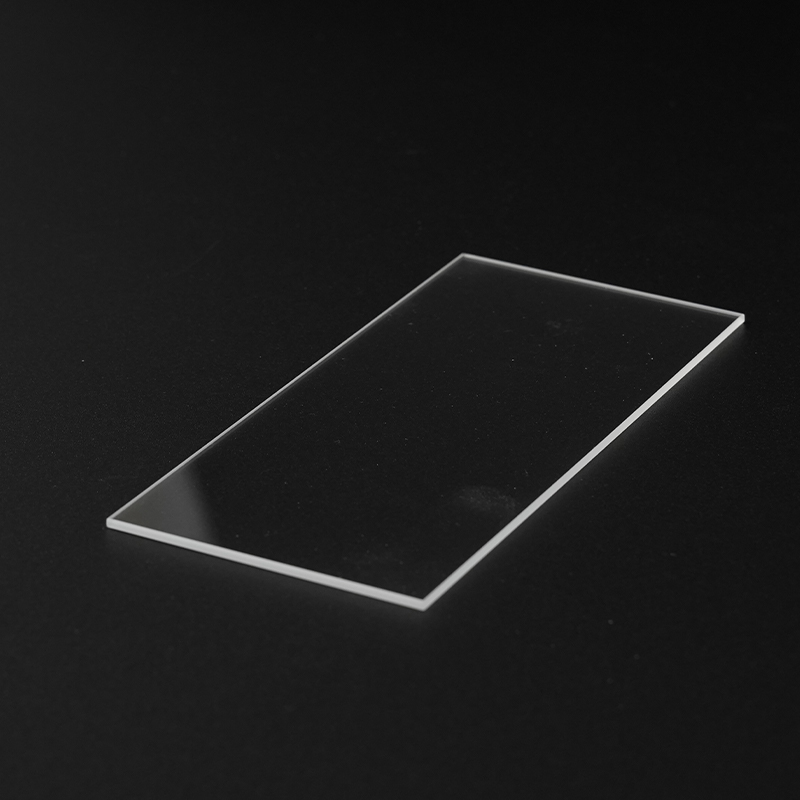

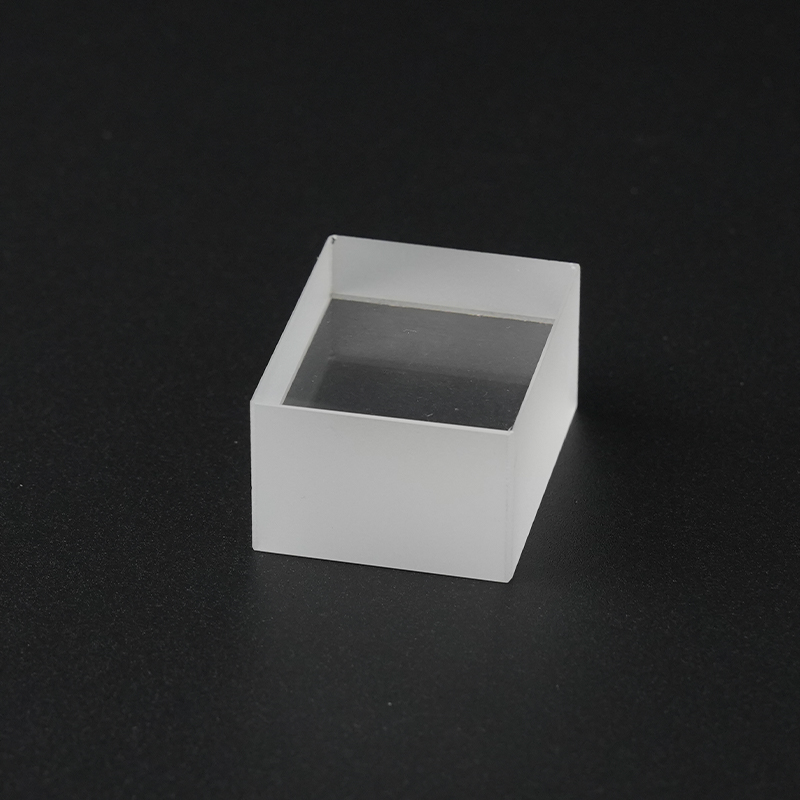

Uv Optical Quartz Plate: Jgs2
Inquiry
Product introduction
UV optical quartz plate: JGS2 is transparent in the ultraviolet and visible spectrum; has no absorption band in the 200-250nm band; has a strong absorption band in the 2600-2800nm band; is non-luminescent, and has stable light radiation.
Product parameters
| Grade | Product Description | Transmission Range (μm) |
|---|---|---|
| JGS1 | Far UV Optical Quartz Glass | 0.185-2.5 μm |
| JGS2 | UV Optical Quartz Glass | 0.220-2.5 μm |
| JGS3 | IR Optical Quartz Glass | 0.260-3.5 μm |
Chemical element composition (Typical data)
|
|
Al |
Fe |
|
Li |
|
Na |
|
Ca |
Mg |
|
Ti |
|
|
MQ-T200 |
20.00 |
0.40 |
1.00 |
1.4 |
0.01 |
1.50 |
0.20 |
0.50 |
|
|
|
120-260 |
|
MQ-T210 260 |
15.00 |
0.20 |
0.60 |
0.40 |
0.02 |
0.80 |
0.10 |
0.40 |
0.05 |
0.06 |
1.20 |
120-260 |

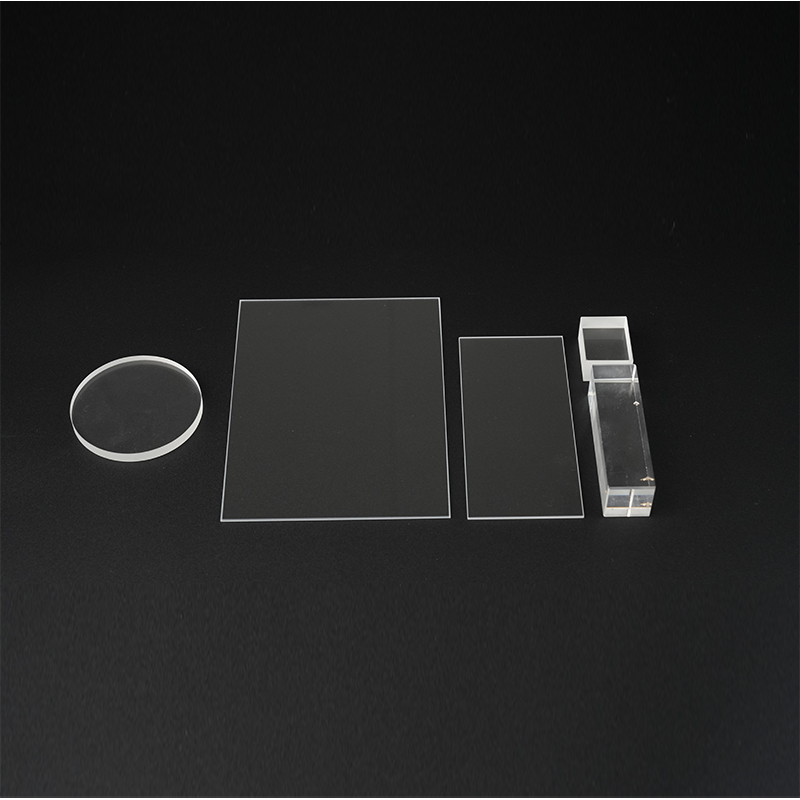

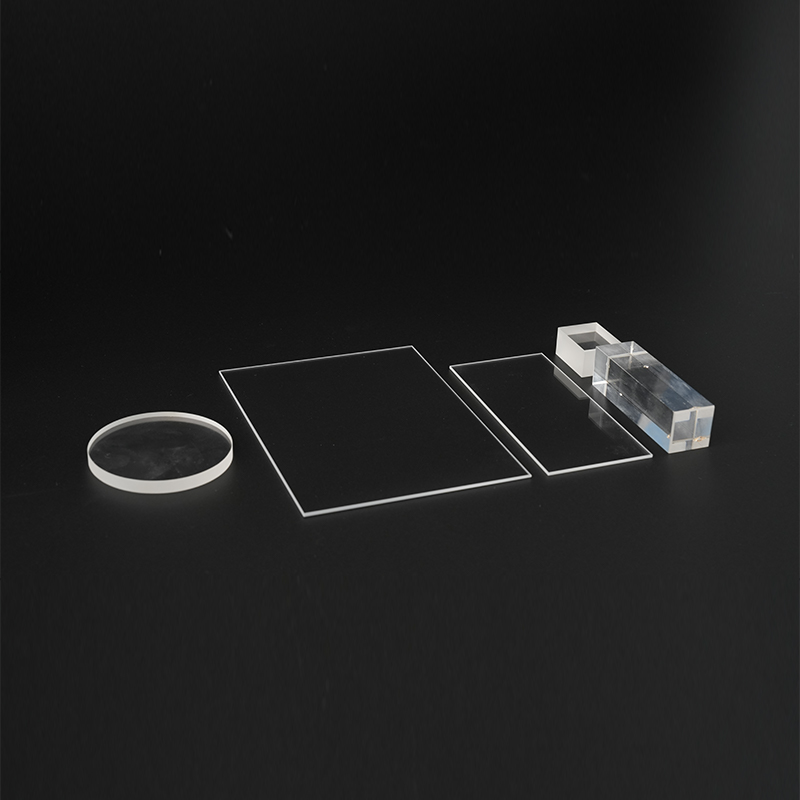

| Product Type | Standard Size Range | Remarks |
|---|---|---|
| Transparent Round Ingot | Ø150×600mm ~ Ø650×200mm | Custom sizes available upon request |

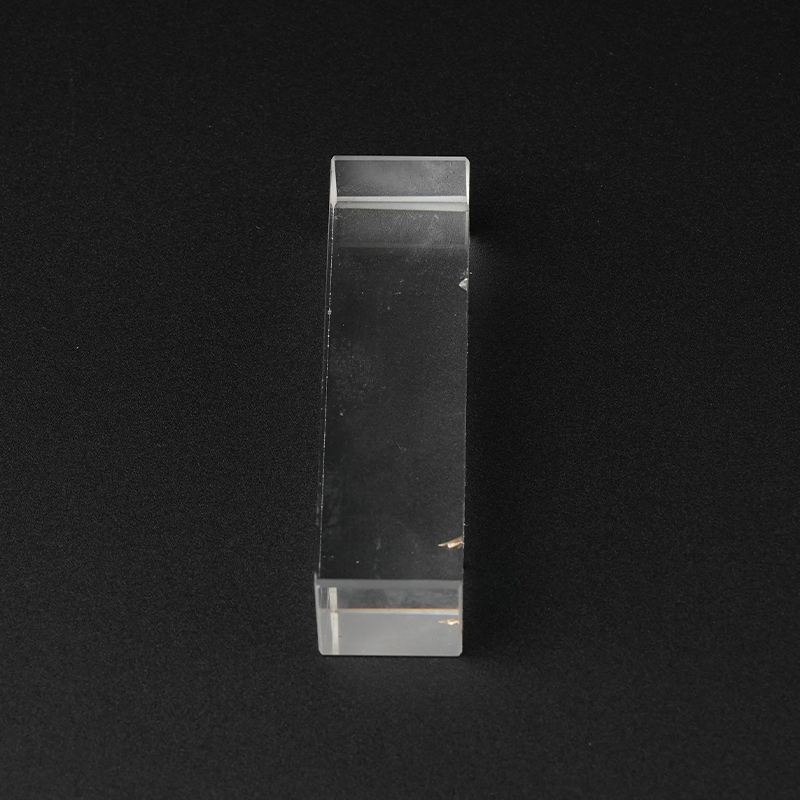

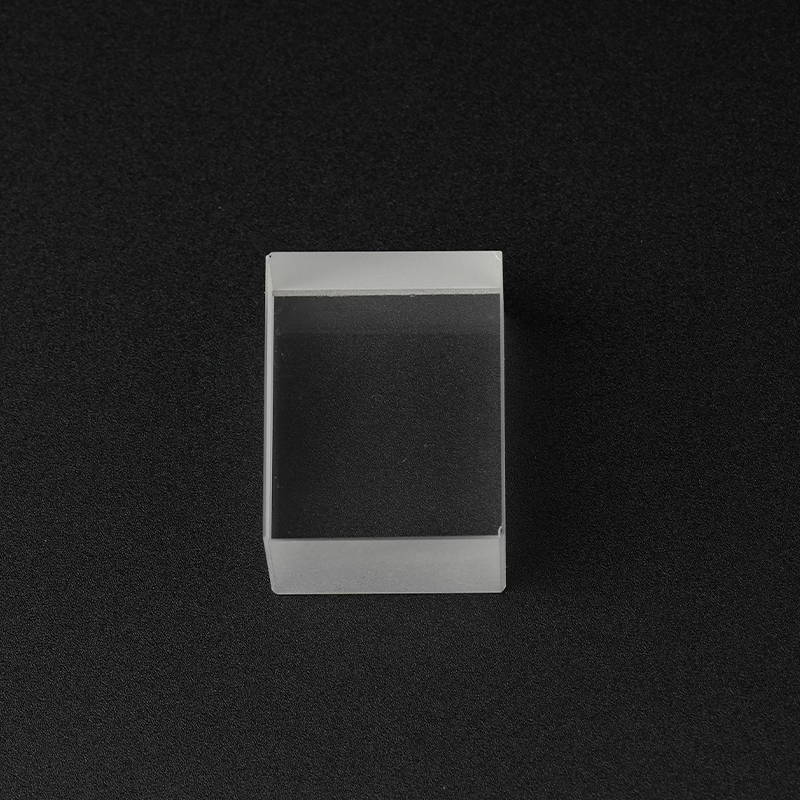

| Transparent Square Ingot | Max. size: 450×450×200mm (L×W×H) | - |

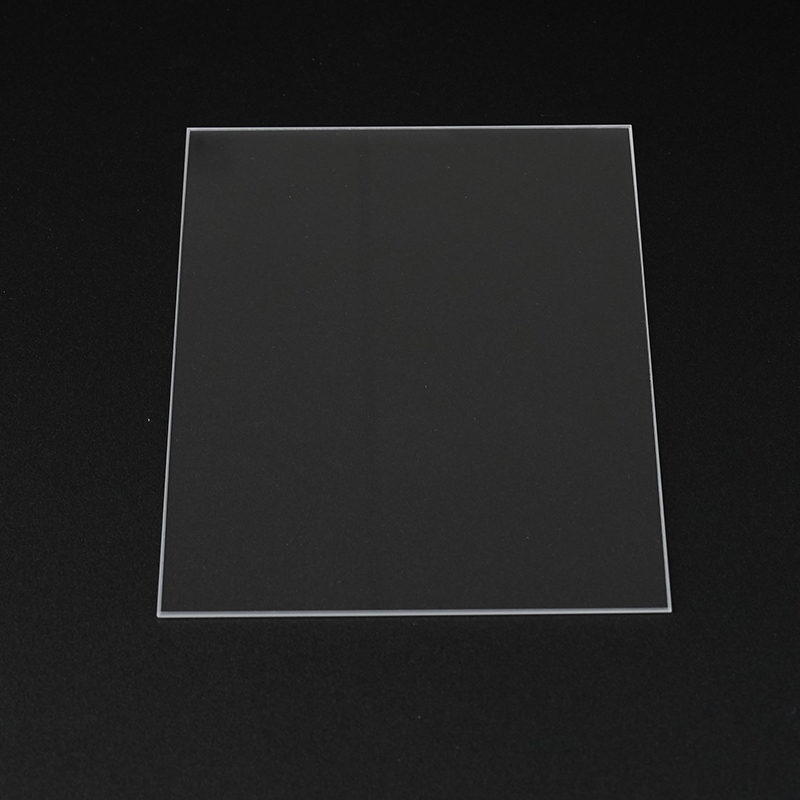

| Transparent Square Plate (Polished) | 10×10×>0.5mm ~ 600×600×3-5mm (L×W×T) | Max. size: 350×1400×3-8mm |
| Transparent Square Plate (Rough) | Max. size: 400×3000×5-10mm (L×W×T) | - |

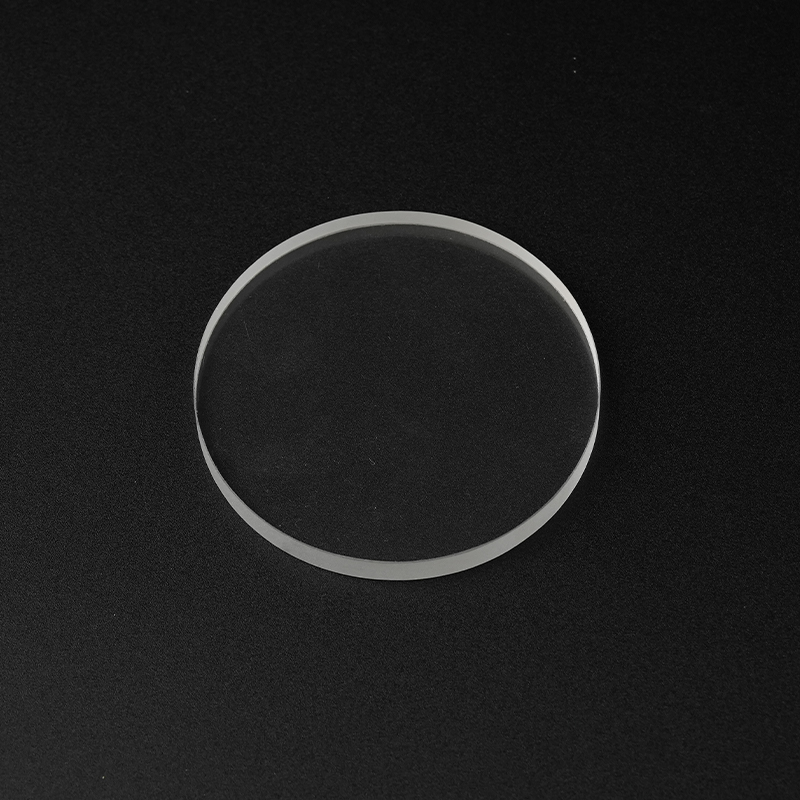

| Transparent Disc | Ø2×>0.5mm ~ Ø650×3-5mm (Dia.×Thickness) | - |

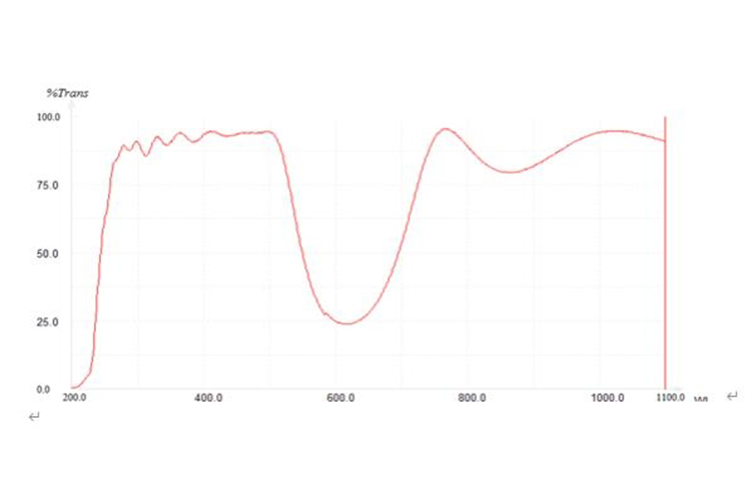

Optical properties
Our transparent quartz material has excellent transmission,especiallyultrared zoneandvisiblearea, compared with ordinary glass.
