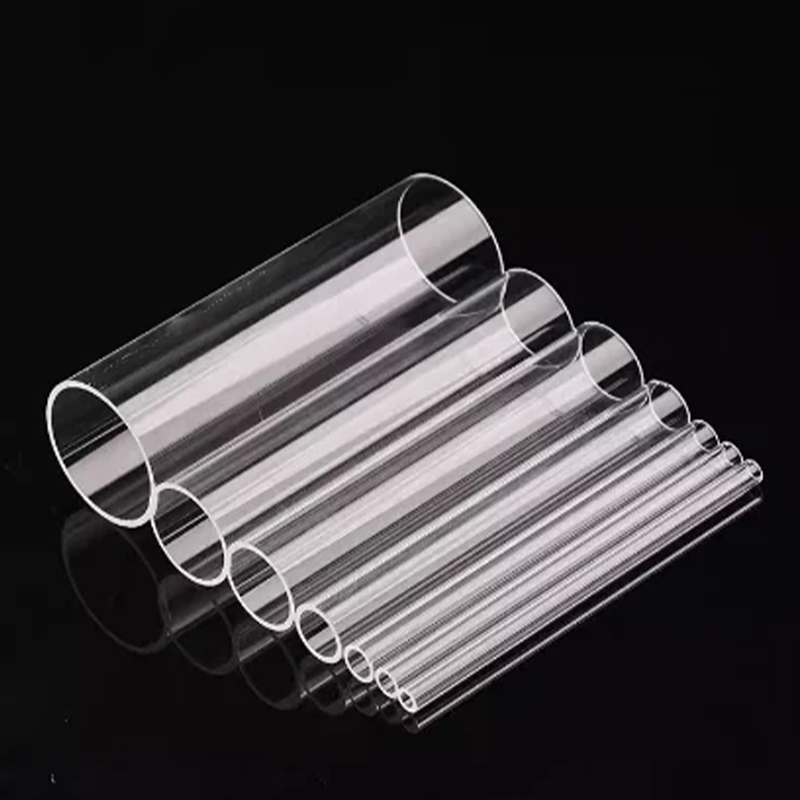

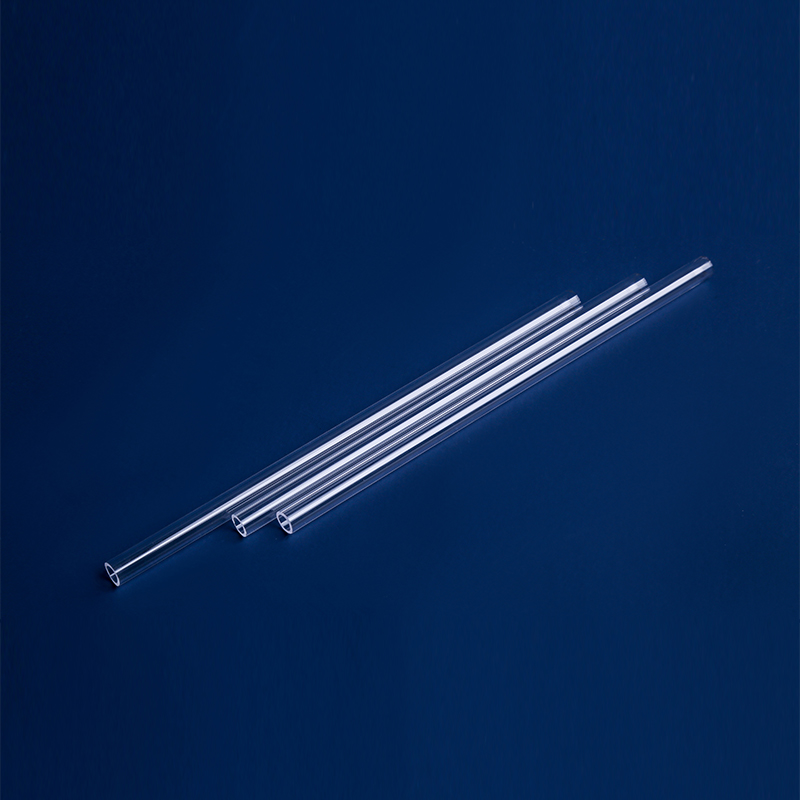

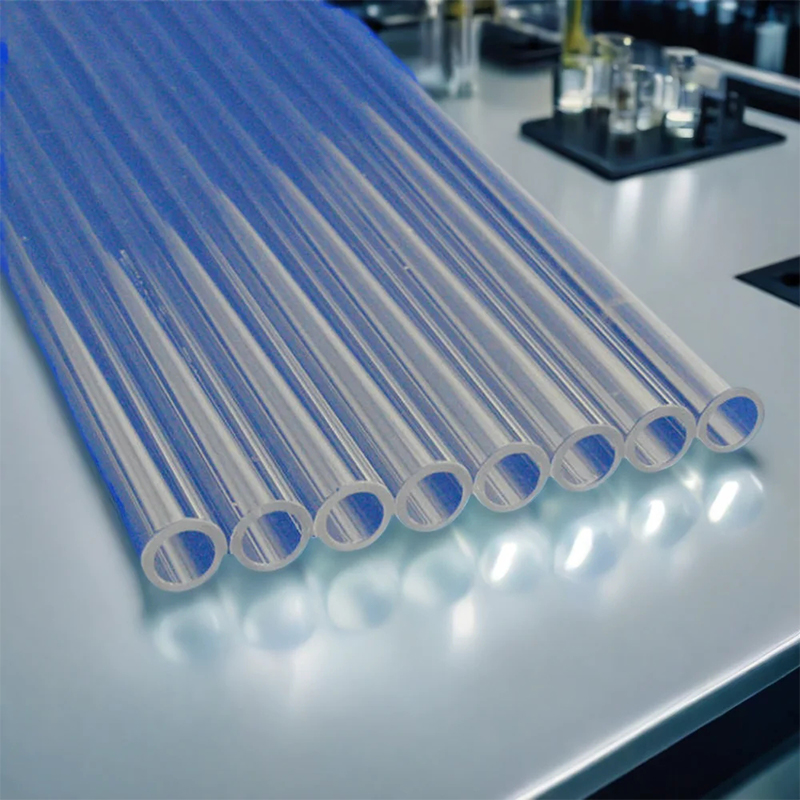

Transparent Quartz Tube
Inquiry
Product introduction
The SiO2 of transparent quartz tube reaches above 99.9, and it has excellent geometric dimensions, chemical stability, thermal stability, resistance to thermal denaturation and anti-crystallization, and an optical transmittance of above 93; the hydroxyl group of the dehydroxylated tube is below 10ppm, and after vacuum dehydroxylation, the hydroxyl group can reach below 5ppm, which is suitable for low-hydroxyl products such as high-pressure mercury lamps, sodium lamps, and metal halide lamps.
Product parameters
MQ-T100 Chemical element composition(Typical data) ppm
|
|
Al |
Fe |
K |
Li |
Cu |
Na |
B |
Ca |
Mg |
P |
Ti |
OH |
|
MQ-T100 MQ-T101 MQ-T102 |
25.00 |
0.80 |
1.20 |
0.80 |
0.08 |
2.00 |
0.50 |
0.80 |
0.25 |
— — — |
— — — |
150 20 5 |
|
MQ-T110 |
|
|
|
|
|
|
|
|
|
|
|
120 |
|
MQ-T111 |
15.00 |
0.20 |
0.60 |
0.40 |
0.02 |
0.80 |
0.10 |
0.40 |
0.05 |
0.06 |
1.20 |
15 |
|
MQ-T112 |
|
|
|
|
|
|
|
|
|
|
|
5-1 |
|
MQ-R100 MQ-R101 |
45.00 |
1.00 |
2.50 |
1.50 |
0.15 |
5.00 |
— — — |
1.50 |
0.75 |
— — — |
— — — |
— — — |
OH content differs with detail, usage, and customer requirements.
Transparent quartz tube general dimension and tolerance (mm)
|
Designation |
OD |
Wall |
Length |
Max.Siding |
Max, Ovality |
Max.Bow |
|
<10 |
±0.15 |
±0.10 |
±1.0 |
0.10 |
0.15 |
2% |
|
10-15 |
+020 |
±0.10 |
±1.0 |
0.12 |
0.20 |
2% |
|
15-20 |
±0.30 |
±0.15 |
±1.0 |
0.13 |
0.25 |
2% |
|
20-30 |
±040 |
±015 |
±1.0 |
0.15 |
0.30 |
2% |
|
30-40 |
±0.60 |
±0.15 |
±1.0 |
0.25 |
0.40 |
2% |
|
40-50 |
±080 |
±0.20 |
±1.0 |
0.30 |
0.50 |
2% |
|
50-65 |
±1.00 |
±0.20 |
±2.0 |
0.40 |
0.60 |
2.5%% |
|
65-85 |
±1.20 |
±0.30 |
±2.0 |
0.50 |
0.80 |
2.5%% |
|
85-100 |
±1.50 |
±0.30 |
±2.0 |
0.60 |
1.00 |
25% |
More severe tolerance can be supplied.
Transparent quartz glass properties
|
Property |
MQ-T100 MQ-T101 MQ-T102 |
MQ-T110 MQ-T111 MQ-T112 |
MQ-R300 MQ-R400 |
MQ-R200 |
|
Density |
2.2×103kg/m3 |
2.2×103kg/m3 |
2.22×103kg/m3 |
2.21 ×103kg/m3 |
|
Hardness |
570KHN100 |
580KHN100 |
585KHN100 |
580KHN100 |
|
Tensile Strength |
4.8×10Pa(N/m2) |
4.9 × 10⁷ Pa(N/m2) |
5.0×10Pa(N/m2) |
4.9×10?Pa(N/m2) |
CompressionStrength |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
(20 °C-300℃) Coefficient of Thermal Expansion |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
Thermal Conductivity |
1.4W/m℃ |
1.4W/m℃ |
1.4W/m℃ |
1.4W/m℃ |
|
Specific Heat |
660J/kg℃ |
670J/kg℃ |
680J/kg℃ |
680J/kg℃ |
|
Softening Point |
1630℃ |
1680℃ |
1690℃ |
1700℃ |
Annealing Point |
1180℃ |
1215℃ |
1220℃ |
1210℃ |
