Quartz Plate with hole
Inquiry
Product introduction
Quartz plate/sheet is usually smelted and cut from quartz; they have a silica content of over 99.99%. The hardness is seven grades of Mohs, and it has the characteristics of high temperature resistance, low thermal expansion coefficient, thermal shock resistance, and good electrical insulation performance.
Product parameters
| Item | Details |
|---|---|
| Thickness Range | 5mm - 1500mm; 0.5mm - 100mm |
| We Can Do | 1. Different raw materials for different applications for customers to choose from: JGS1 (Far Ultraviolet Optic Quartz slab) JGS2 (Ultraviolet Optic Quartz slab) JGS 3 (Infrared Optic Quartz slab) 2. Strict size and tolerance control 3. No air bubble, no air line 4. Professional inspection before delivery |
| Advantages of Quartz Glass Plate/Sheet | 1. Resist high temperature 2. Good chemical stability, acid-proof, alkali-proof 3. Lower coefficient of thermal expansion 4. High transmittance |
| Property | Value | Thermal stability: Put the quartz material from 1100 ∘°C to 20 ∘°C three times, will not crack. It will not change color under 1100 degrees for three hours. |
| SiO2 | > 99.9% | |
| Density | 2.2×103kg/m3 | |
| Hardness | 570KHN0.00 | |
| Tensile strength | 4.8×108Pa(N/m2) | |
| Compression strength | > 1.1×109Pa | |
| Coefficient of thermal expansion (20∘C−900∘°C) | 5.5×10−7cm/cm∘C | |
| Thermal conductivity (20∘°C) | 1.4W/m∘C | |
| Specific heat (20∘°C) | 660J/kg∘C | |
| Softening point | 1730∘C | |
| Annealing point | 1250∘C |
Applications:
Transparent Quartz Plate is widely used in electric light sources, electrical
appliances (electric), semiconductor, Solar, optical communications, military
industry, metallurgy, building materials, chemical, machinery, electricity, envi
environment- protection and other.

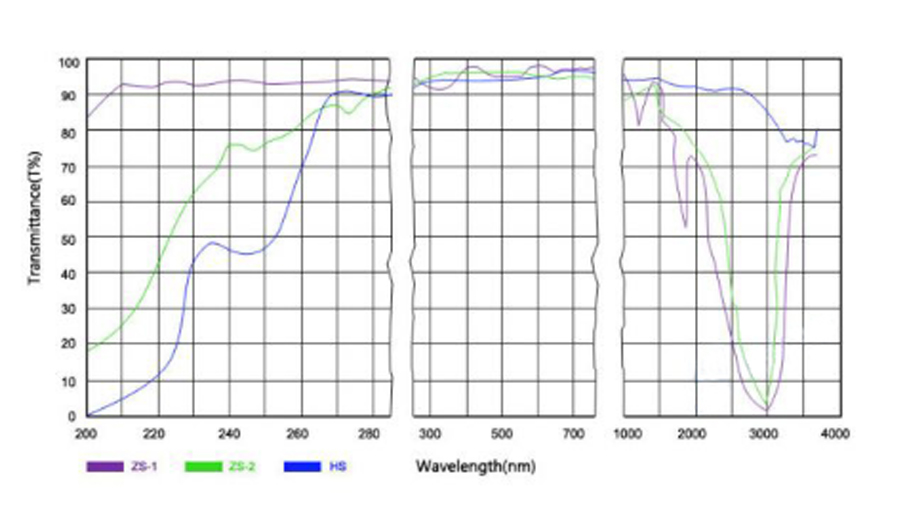

Spectrogram of JGS1, JGS2, JGS3:
