Quartz source bottle
Inquiry
Product introduction

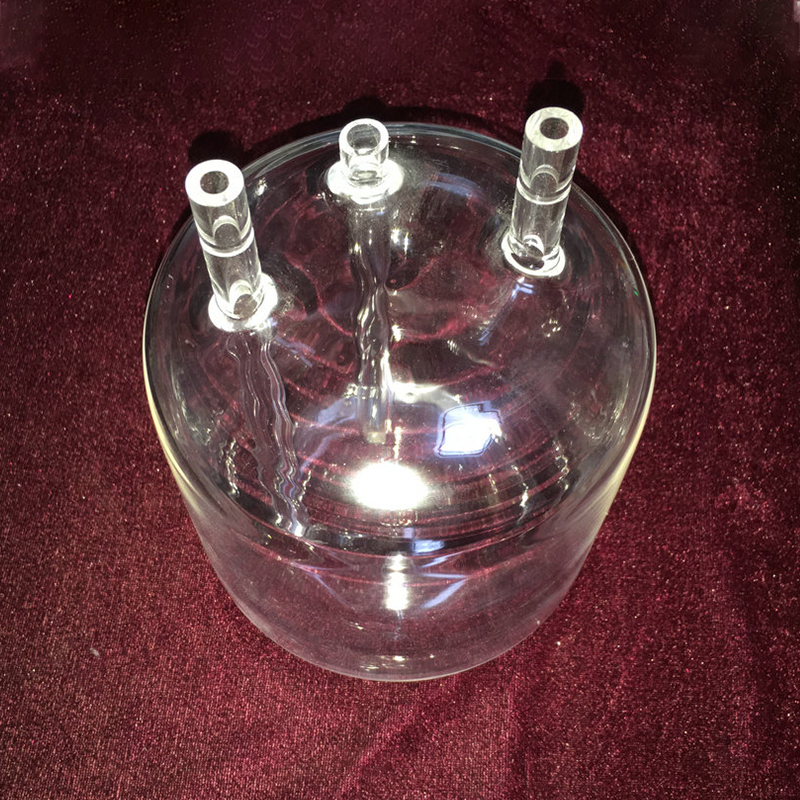

The quartz source bottle is a special container made of high-purity quartz glass. It is mainly used in semiconductors, photovoltaics, fiber-optic communications, high-end laboratories and other fields to hold or transport high-purity chemical raw materials (such as silicon sources, doping gases, etching solutions, etc.). The quartz source bottle is made of transparent quartz glass.
① The average thermal expansion coefficient of transparent quartz glass at 0~1000℃ is 5.4X10-7/℃
② Crystallization temperature: The starting temperature is about 1000℃, but surface contamination will reduce the crystallization temperature and accelerate the crystallization process:
③ Conventional use temperature: Continuous use temperature is about 1050℃;
Intermittent use temperature is about 1250℃.
④ Several characteristic temperatures:
Strain temperature is about 1075℃;
Annealing temperature is about 1180℃;
Hot working temperature is 1700~2100℃;
Product parameters
MQ-T100 Chemical element composition(Typical data) ppm
|
|
Al |
Fe |
K |
Li |
Cu |
Na |
B |
Ca |
Mg |
P |
Ti |
OH |
|
MQ-T100 MQ-T101 MQ-T102 |
|
|
|
|
|
|
|
|
|
|
|
150 20 5 |
|
MQ-T110 MQ-T111 MQ-T112 |
15.00 |
0.20 |
0.60 |
0.40 |
0.02 |
0.80 |
0.10 |
0.40 |
0.05 |
0.06 |
1.20 |
120 15 5-1 |
|
MQ-R100 MQ-R101 |
45.00 |
1.00 |
2.50 |
1.50 |
0.15 |
5.00 |
— — — |
1.50 |
0.75 |
— — — |
— — — |
— — — |
OH content different with detail using and customer requirements.
Transparent quartz glass properties
|
Property |
MQ-T100 MQ-T101 MQ-T102 |
MQ-T110 MQ-T111 MQ-T112 |
MQ-R300 MQ-R400 |
|
|
Density |
2.2×103kg/m3 |
2.2×103kg/m3 |
2.22×103kg/m3 |
2.21 ×103kg/m3 |
|
Hardness |
|
|
|
|
|
Tensile Strength |
|
|
|
|
|
CompressionStrength |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
|
Coefficient of Thermal Expansion |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
|
Thermal Conductivity |
1.4W/m℃ |
|
|
|
|
Specific Heat |
660J/kg℃ |
670J/kg℃ |
680J/kg℃ |
680J/kg℃ |
|
Softening Point |
1630℃ |
1680℃ |
1690℃ |
1700℃ |
|
Annealing Point |
1180℃ |
1215℃ |
1220℃ |
|
