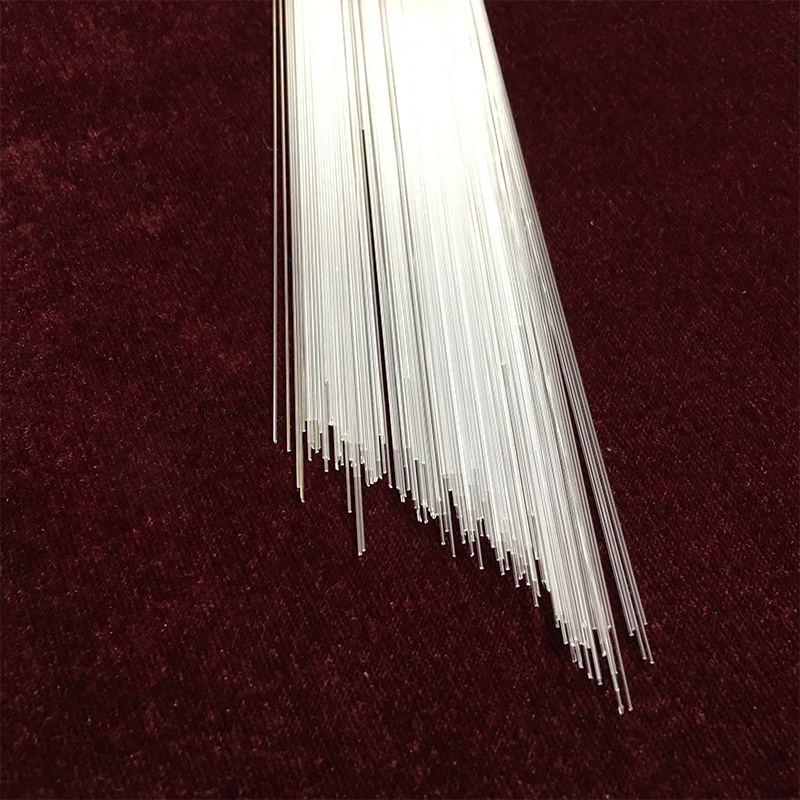

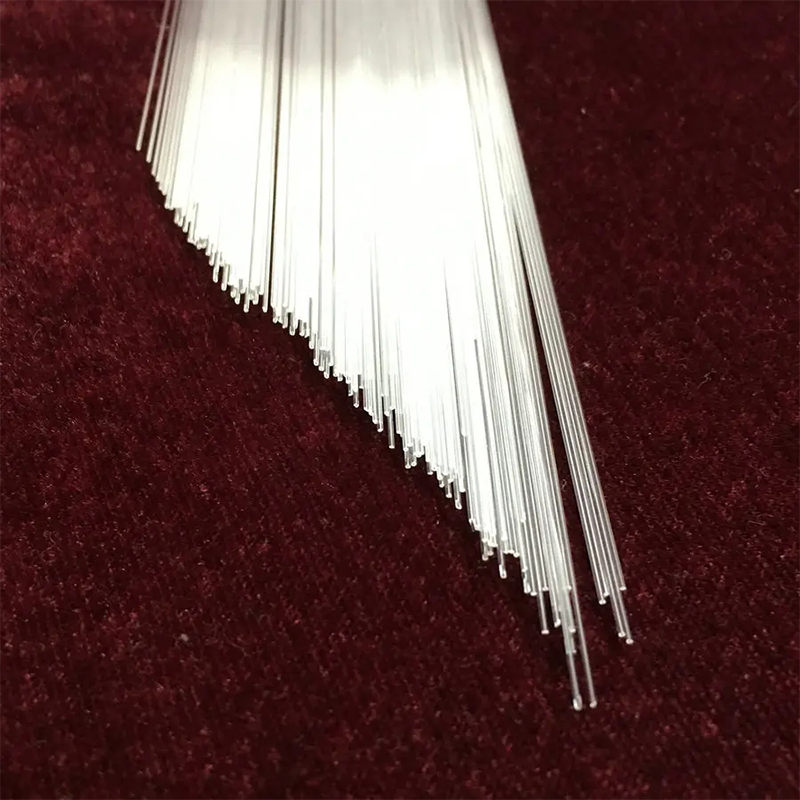

Capillary Quartz Tubes
Inquiry
Product introduction
The capillary quartz tube is made of high-purity quartz raw material to ensure extremely low metal ion and impurity content, reduce light scattering, and ensure thermal stability. The production process strictly controls bubbles and impurities to avoid defects under high temperature or strong light environments.
The product is suitable for most electric light sources and optical applications. The hydroxyl content is further reduced by high-temperature vacuum treatment. It is particularly suitable for applications sensitive to hydroxyl, such as ultraviolet lasers and high-end metal halide lamps, to prevent light decay or material degradation caused by hydroxyl absorption.
The capillary quartz tube has high transmittance in the ultraviolet to near-infrared bands, suitable for precision optical systems, and high-purity materials reduce spontaneous fluorescence under ultraviolet excitation, suitable for laser and optical sensor applications.
Product parameters
| Item | Details |
|---|---|
| Product Name | Clear Quartz Pipe / Clear Large Diameter Quartz Glass Tube |
| Application | Heater |
| Outside Diameter | 3–450 mm |
| Place of Origin | Jiangsu, China |
| Brand Name | Mingyang Quartz Glass Tube |
| Model Number | Quartz Glass Test Tube |
| Color | Opaque/Clear |
| Surface Treatment | Grinded |
| Shape | One End Closed Quartz Tube (Both Ends Open Tube Available) |
| Ozone Content | Ozone Free |
| Material | >99.99% SiO₂ (Silica) |
| Certification | ISO 9001 |
| Size | Customizable Tube Size |
| Length | Customizable |
| Density | 2.2 g/cm³ |
| Operating Temperature | 1,250°C |
| Package | Standard Export Packing |
MQ-T100 Chemical element composition(Typical data) ppm
|
|
Al |
Fe |
K |
Li |
Cu |
Na |
B |
Ca |
Mg |
P |
Ti |
OH |
|
MQ-T100 MQ-T101 MQ-T102 |
25.00 |
0.80 |
1.20 |
0.80 |
0.08 |
2.00 |
0.50 |
0.80 |
0.25 |
— — — |
— — — |
150 20 5 |
|
MQ-T110 |
|
|
|
|
|
|
|
|
|
|
|
120 |
|
MQ-T111 |
15.00 |
0.20 |
0.60 |
0.40 |
0.02 |
0.80 |
0.10 |
0.40 |
0.05 |
0.06 |
1.20 |
15 |
|
MQ-T112 |
|
|
|
|
|
|
|
|
|
|
|
5-1 |
|
MQ-R100 MQ-R101 |
45.00 |
1.00 |
2.50 |
1.50 |
0.15 |
5.00 |
— — — |
1.50 |
0.75 |
— — — |
— — — |
— — — |
OH content differs with detail, usage, and customer requirements.
Transparent quartz tube general dimension and tolerance (mm)
|
Designation |
OD |
Wall |
Length |
Max.Siding |
Max, Ovality |
Max.Bow |
|
<10 |
±0.15 |
±0.10 |
±1.0 |
0.10 |
0.15 |
2% |
|
10-15 |
+020 |
±0.10 |
±1.0 |
0.12 |
0.20 |
2% |
|
15-20 |
±0.30 |
±0.15 |
±1.0 |
0.13 |
0.25 |
2% |
|
20-30 |
±040 |
±015 |
±1.0 |
0.15 |
0.30 |
2% |
|
30-40 |
±0.60 |
±0.15 |
±1.0 |
0.25 |
0.40 |
2% |
|
40-50 |
±080 |
±0.20 |
±1.0 |
0.30 |
0.50 |
2% |
|
50-65 |
±1.00 |
±0.20 |
±2.0 |
0.40 |
0.60 |
2.5%% |
|
65-85 |
±1.20 |
±0.30 |
±2.0 |
0.50 |
0.80 |
2.5%% |
|
85-100 |
±1.50 |
±0.30 |
±2.0 |
0.60 |
1.00 |
25% |
More severe tolerance can be supplied.
Transparent quartz glass properties
|
Property |
MQ-T100 MQ-T101 MQ-T102 |
MQ-T110 MQ-T111 MQ-T112 |
MQ-R300 MQ-R400 |
MQ-R200 |
|
Density |
2.2×103kg/m3 |
2.2×103kg/m3 |
2.22×103kg/m3 |
2.21 ×103kg/m3 |
|
Hardness |
570KHN100 |
580KHN100 |
585KHN100 |
580KHN100 |
|
Tensile Strength |
4.8×10Pa(N/m2) |
4.9 × 10⁷ Pa(N/m2) |
5.0×10Pa(N/m2) |
4.9×10?Pa(N/m2) |
CompressionStrength |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
(20 °C-300℃) Coefficient of Thermal Expansion |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
Thermal Conductivity |
1.4W/m℃ |
1.4W/m℃ |
1.4W/m℃ |
1.4W/m℃ |
|
Specific Heat |
660J/kg℃ |
670J/kg℃ |
680J/kg℃ |
680J/kg℃ |
|
Softening Point |
1630℃ |
1680℃ |
1690℃ |
1700℃ |
Annealing Point |
1180℃ |
1215℃ |
1220℃ |
1210℃ |
