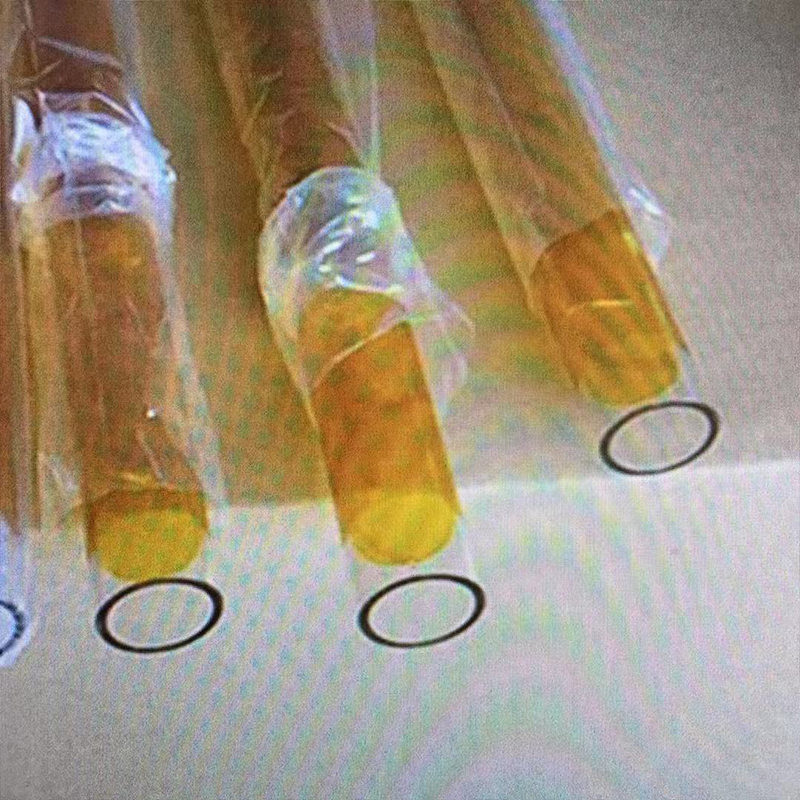

Red Quartz Tube
Inquiry
Product introduction
Red quartz tube is a quartz glass product with high-purity silicon dioxide (SiO2) as the main component, with SiO2 content ≥99.9%, and has extremely high chemical purity and physical stability.
Red quartz tube has excellent high temperature resistance, with a softening point of more than 1700℃, and can be used stably for a long time in a high temperature environment of 1200℃ without deformation or performance degradation. It can withstand extreme temperature changes from 1000℃ to room temperature without breaking.
Red quartz tube has strong corrosion resistance to most acids, alkalis, and organic solvents, and can maintain stable performance in harsh chemical environments for a long time.
Product parameters
| Item | Details |
|---|---|
| Product Name | Red Quartz Pipe / Clear large diameter quartz glass tube (with red option) |
| Application | Heater |
| Outside Diameter | 3 - 450mm |
| Place of Origin | Jiangsu, China |
| Brand Name | Mingyang Quartz Glass Tube |
| Model Number | Quartz Glass Test Tube |
| Color | Opaque/clear (red available) |
| Surface Treatment | Grinded |
| Shape | One End Closed Quartz Tube (Both ends open tube available) |
| Ozone Content | Ozone Free |
| Material | >99.99% SiO₂ |
| Certification | ISO9001 |
| Size | Customizable tube size |
| Length | Customizable |
| Density | 2.2g/cm³ |
| Operating Temperature | 1250℃ |
| Package | Standard Export Packing |
MQ-T100 Chemical element composition(Typical data) ppm
|
|
Al |
Fe |
K |
Li |
Cu |
Na |
B |
Ca |
Mg |
P |
Ti |
OH |
|
MQ-T100 MQ-T101 MQ-T102 |
25.00 |
0.80 |
1.20 |
0.80 |
0.08 |
2.00 |
0.50 |
0.80 |
0.25 |
— — — |
— — — |
150 20 5 |
|
MQ-T110 |
|
|
|
|
|
|
|
|
|
|
|
120 |
|
MQ-T111 |
15.00 |
0.20 |
0.60 |
0.40 |
0.02 |
0.80 |
0.10 |
0.40 |
0.05 |
0.06 |
1.20 |
15 |
|
MQ-T112 |
|
|
|
|
|
|
|
|
|
|
|
5-1 |
|
MQ-R100 MQ-R101 |
45.00 |
1.00 |
2.50 |
1.50 |
0.15 |
5.00 |
— — — |
1.50 |
0.75 |
— — — |
— — — |
— — — |
OH content differs with detail, usage, and customer requirements.
Transparent quartz tube general dimension and tolerance (mm)
|
Designation |
OD |
Wall |
Length |
Max.Siding |
Max, Ovality |
Max.Bow |
|
<10 |
±0.15 |
±0.10 |
±1.0 |
0.10 |
0.15 |
2% |
|
10-15 |
+020 |
±0.10 |
±1.0 |
0.12 |
0.20 |
2% |
|
15-20 |
±0.30 |
±0.15 |
±1.0 |
0.13 |
0.25 |
2% |
|
20-30 |
±040 |
±015 |
±1.0 |
0.15 |
0.30 |
2% |
|
30-40 |
±0.60 |
±0.15 |
±1.0 |
0.25 |
0.40 |
2% |
|
40-50 |
±080 |
±0.20 |
±1.0 |
0.30 |
0.50 |
2% |
|
50-65 |
±1.00 |
±0.20 |
±2.0 |
0.40 |
0.60 |
2.5%% |
|
65-85 |
±1.20 |
±0.30 |
±2.0 |
0.50 |
0.80 |
2.5%% |
|
85-100 |
±1.50 |
±0.30 |
±2.0 |
0.60 |
1.00 |
25% |
More severe tolerance can be supplied.
Transparent quartz glass properties
|
Property |
MQ-T100 MQ-T101 MQ-T102 |
MQ-T110 MQ-T111 MQ-T112 |
MQ-R300 MQ-R400 |
MQ-R200 |
|
Density |
2.2×103kg/m3 |
2.2×103kg/m3 |
2.22×103kg/m3 |
2.21 ×103kg/m3 |
|
Hardness |
570KHN100 |
580KHN100 |
585KHN100 |
580KHN100 |
|
Tensile Strength |
4.8×10Pa(N/m2) |
4.9 × 10⁷ Pa(N/m2) |
5.0×10Pa(N/m2) |
4.9×10?Pa(N/m2) |
CompressionStrength |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
>1.1 ×109Pa |
(20 °C-300℃) Coefficient of Thermal Expansion |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
5.5×10-7cm/cm℃ |
Thermal Conductivity |
1.4W/m℃ |
1.4W/m℃ |
1.4W/m℃ |
1.4W/m℃ |
|
Specific Heat |
660J/kg℃ |
670J/kg℃ |
680J/kg℃ |
680J/kg℃ |
|
Softening Point |
1630℃ |
1680℃ |
1690℃ |
1700℃ |
Annealing Point |
1180℃ |
1215℃ |
1220℃ |
1210℃ |
