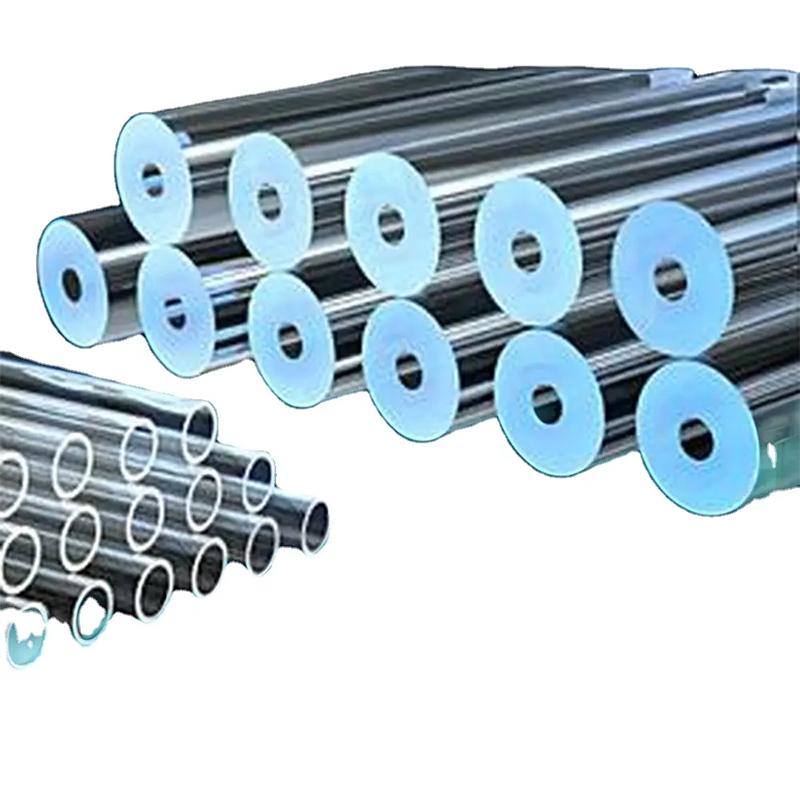

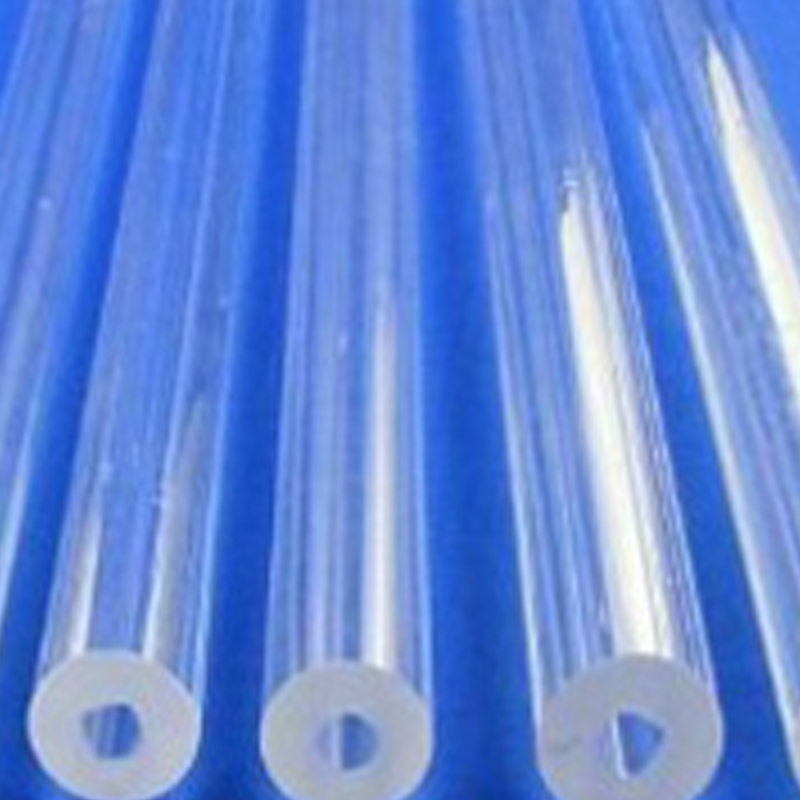

High-Temperature And Ultraviolet Resistant Quartz Glass Tubes
Inquiry
Product introduction
The main component of High-Temperature and Ultraviolet Resistant Quartz Glass Tubes, silicon dioxide (SiO₂), has a purity of up to 99.9% and extremely low impurity content.
The optical transmittance of High-Temperature and Ultraviolet Resistant Quartz Glass Tubes is more than 93% in the visible light to near infrared band, with uniform light transmission and extremely low light loss. It can efficiently transmit light source energy, reduce energy loss, and maintain the clarity and stability of optical imaging.
As the core component of light sources such as high-pressure mercury lamps, sodium lamps, and metal halide lamps, the product meets the requirements of low hydroxyl and high light transmittance.
Product parameters
| Tem | Details |
| Product Name | Clear large diameter quartz glass tube |
| Also Known As | Clear Quartz Pipe |
| Application | Heater |
| Outside Diameter | 3 - 450mm |
| Place of Origin | Jiangsu, China |
| Brand Name | Mingyang Quartz Glass Tube |
| Model Number | Quartz Glass Test Tube |
| Color | Opaque/clear |
| Surface Treatment | Grinded |
| Shape | One End Closed Quartz Tube (Available: Both end open tube, one end closed tube) |
| Ozone Content | Ozone Free |
| Material | >99.99% SiO₂ |
| Certification | ISO9001 |
| Size | Customized the size of the tube |
| Length | Customized |
| Density | 2.2g/cm³ |
| Operating Temperature | 1250℃ |
| Package | Standard Export Packing |
MQ-R100 Translucent quartz tube general dimensions and tolerance
|
Designation |
OD |
Wall |
Length |
Max.Siding |
Max.Ovality |
Max.Bow |
|
5-8 |
±0.25 |
±0.10 |
±1.0 |
0.10 |
0.20 |
2% |
|
8-12 |
±0.30 |
±0.10 |
±1.0 |
0.15 |
0.20 |
2% |
|
12-15 |
±0.40 |
±0.15 |
±1.0 |
0.20 |
0.30 |
2% |
|
15-20 |
±0.50 |
±0.15 |
±1.0 |
0.20 |
0.40 |
2% |
|
20-30 |
±0.80 |
±0.20 |
±1.0 |
0.30 |
0.50 |
3% |
Translucent quartz glass properties
|
Property |
MQ-R100 |
MQ-R300/R400 |
|
Density |
1.92×103kg/m3 |
1.95×103kg/m3 |
Compression Strength |
>1.0×10 °Pa(N/m2) |
>1.0×10 °Pa(N/m2) |
|
Coefficient of Thermal Expansion |
5.4×10-7cm/cm℃ |
5.4×10-7cm/cm℃ |
|
Thermal Conductivity |
Low |
Low |
|
Specific Heat |
640J/kg℃ |
650J/kg℃ |
|
Softening Point |
1580℃ |
1600℃ |
|
Annealing Point |
1050℃ |
1100℃ |
