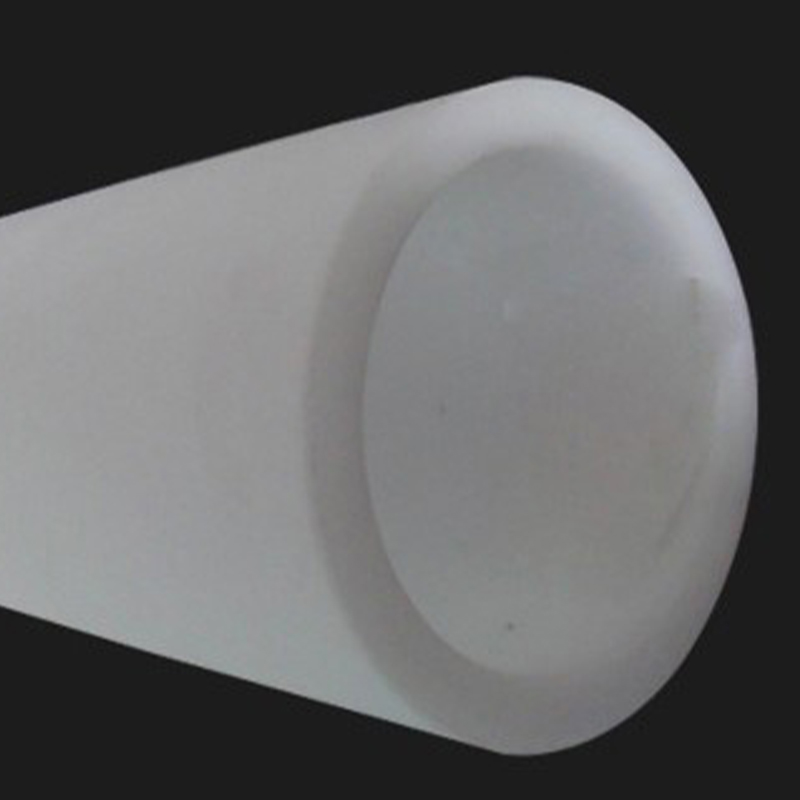

Large-Diameter Milky Quartz Tube
Inquiry
Product introduction
Large-diameter milky quartz tubes can efficiently convert electrical energy or thermal energy into far-infrared radiation, improve heating efficiency, and are suitable for industrial and household heating equipment.
The tube wall treated with special technology can effectively shield ultraviolet light in the 190-320nm band, avoiding harm to the human body and the environment, and is suitable for environmentally friendly light source scenes such as medical treatment and food sterilization.
The large-diameter opalescent quartz tube is a quartz tube treated with a new pearlescent technology. The surface is as delicate as pearls, and the performance is better than that of ordinary opalescent tubes, with higher mechanical strength and thermal shock stability.
Product parameters
| Item | Details |
|---|---|
| Product Name | Milkwhite Quartz Pipe |
| Application | Heater |
| Outside Diameter | 3–450 mm |
| Place of Origin | Jiangsu, China |
| Brand Name | Mingyang Quartz Glass Tube |
| Model Number | Quartz Glass Test Tube |
| Color | Opaque/Milky White |
| Surface Treatment | Grinded |
| Shape | One End Closed Quartz Tube (Both Ends Open Tube Available) |
| Ozone Content | Ozone Free |
| Material | >99.99% SiO₂ (Silica) |
| Certification | ISO 9001 |
| Size | Customizable Tube Size |
| Length | Customizable |
| Density | 2.2 g/cm³ |
| Operating Temperature | 1,250°C |
| Package | Standard Export Packing |
MQ-R100 Translucent quartz tube general dimensions and tolerance
|
Designation |
OD |
Wall |
Length |
Max.Siding |
Max.Ovality |
Max.Bow |
|
5-8 |
±0.25 |
±0.10 |
±1.0 |
0.10 |
0.20 |
2% |
|
8-12 |
±0.30 |
±0.10 |
±1.0 |
0.15 |
0.20 |
2% |
|
12-15 |
±0.40 |
±0.15 |
±1.0 |
0.20 |
0.30 |
2% |
|
15-20 |
±0.50 |
±0.15 |
±1.0 |
0.20 |
0.40 |
2% |
|
20-30 |
±0.80 |
±0.20 |
±1.0 |
0.30 |
0.50 |
3% |
Translucent quartz glass properties
|
Property |
MQ-R100 |
MQ-R300/R400 |
|
Density |
1.92×103kg/m3 |
1.95×103kg/m3 |
Compression Strength |
>1.0×10 °Pa(N/m2) |
>1.0×10 °Pa(N/m2) |
|
Coefficient of Thermal Expansion |
5.4×10-7cm/cm℃ |
5.4×10-7cm/cm℃ |
|
Thermal Conductivity |
Low |
Low |
|
Specific Heat |
640J/kg℃ |
650J/kg℃ |
|
Softening Point |
1580℃ |
1600℃ |
|
Annealing Point |
1050℃ |
1100℃ |
